Thin Wall Drawer System
- Thinnest side panel.
- Side panel height: 80, 120 & 150mm
- Full extension with soft close

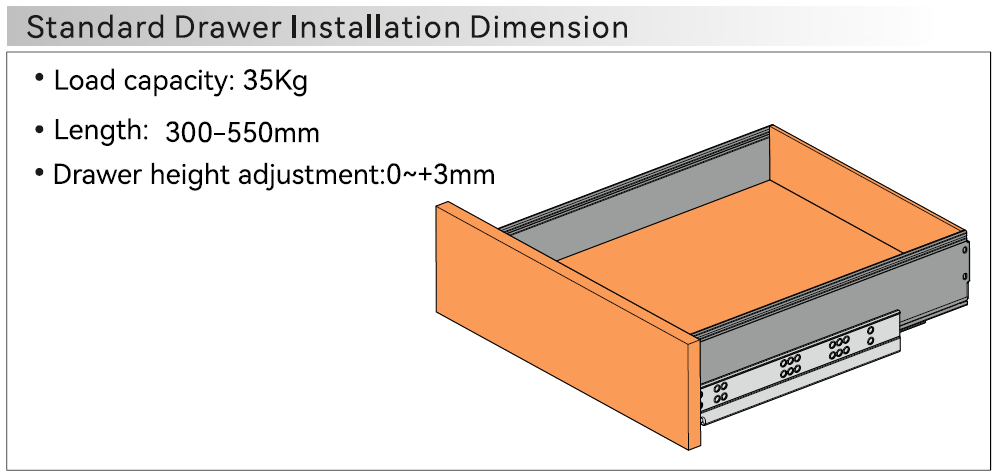

- Load capacity: 35kg
- Available Length: 300, 350, 400, 450, 500, & 550mm
| Item | Code | Size(mm) | Finish |
| Thin - Wall Drawer System 80 | TDS1-30-AT | 300 | Anthracite |
| TDS1-35-AT | 350 | ||
| TDS1-40-AT | 400 | ||
| TDS1-45-AT | 450 | ||
| TDS1-50-AT | 500 | ||
| TDS1-55-AT | 550 | ||
| Back Panel for Thin-Wall Drawer System 80 | TDSBP-80 | 3mtr | |
| Thin - Wall Drawer System 120 | TDS2-30-AT | 300 | |
| TDS2-35-AT | 350 | ||
| TDS2-40-AT | 400 | ||
| TDS2-45-AT | 450 | ||
| TDS2-50-AT | 500 | ||
| TDS2-55-AT | 550 | ||
| Back Panel for Thin-Wall Drawer System 120 | TDSBP-120 | 3mtr | |
| Thin - Wall Drawer System 150 | TDS3-30-AT | 300 | |
| TDS3-35-AT | 350 | ||
| TDS3-40-AT | 400 | ||
| TDS3-45-AT | 450 | ||
| TDS3-50-AT | 500 | ||
| TDS3-55-AT | 550 | ||
| Back Panel for Thin-Wall Drawer System 150 | TDSBP-150 | 3mtr | |
| Thin - Wall Drawer System 180 | TDS4-30-AT | 300 | |
| TDS4-35-AT | 350 | ||
| TDS4-40-AT | 400 | ||
| TDS4-45-AT | 450 | ||
| TDS4-50-AT | 500 | ||
| TDS4-55-AT | 550 |
| Item | Item Code | Pcs/Set | Inner Packing | Outer Packing | |||
| Qty (Nos/Set) | Weight (Kgs) | Qty (Nos/Set) | Weight (Kgs) | Box Size(mm) | |||
| Back Panel for Thin-Wall Drawer System 80 | TDSBP-80 | Each | - | - | 10 Set | 16.5 | 120 X 70 X 3022 |
| Back Panel for Thin-Wall Drawer System 120 | TDSBP-120 | Each | - | - | 10 Set | 23.5 | 120 X 110 X 3022 |
| Back Panel for Thin-Wall Drawer System 150 | TDSBP-150 | Each | - | - | 10 Set | 33.5 | 155 X 120 X 3022 |
| Thin Wall Drawer System 80 | TDS1-30-AT | Set | 1 Set | 2.3 | 4 Set | 9 | 330 X 185 X 275 |
| TDS1-35-AT | Set | 1 Set | 2.5 | 4 Set | 10 | 400 X 190 X 290 | |
| TDS1-40-AT | Set | 1 Set | 2.8 | 4 Set | 11 | 430 X 185 X 280 | |
| TDS1-45-AT | Set | 1 Set | 3.2 | 4 Set | 13 | 500 X 195 X 285 | |
| TDS1-50-AT | Set | 1 Set | 3.5 | 4 Set | 14 | 550 X 195 X 285 | |
| TDS1-55-AT | Set | 1 Set | 3.8 | 4 Set | 15 | 580 X 175 X 280 | |
| Thin Wall Drawer System 120 | TDS2-30-AT | Set | 1 Set | 2.5 | 4 Set | 10 | 330 X 210 X 275 |
| TDS2-35-AT | Set | 1 Set | 2.8 | 4 Set | 11 | 400 X 220 X 285 | |
| TDS2-40-AT | Set | 1 Set | 3.2 | 4 Set | 13 | 450 X 230 X 280 | |
| TDS2-45-AT | Set | 1 Set | 3.5 | 4 Set | 14 | 500 X 225 X 285 | |
| TDS2-50-AT | Set | 1 Set | 3.9 | 4 Set | 16 | 250 X 290 X 290 | |
| TDS2-55-AT | Set | 1 Set | 4.2 | 4 Set | 17 | 580 X 215 X 280 | |
| Thin Wall Drawer System 150 | TDS3-30-AT | Set | 1 Set | 2.7 | 4 Set | 11 | 330 X 240 X 275 |
| TDS3-35-AT | Set | 1 Set | 3.0 | 4 Set | 12 | 380 X 250 X 280 | |
| TDS3-40-AT | Set | 1 Set | 3.4 | 4 Set | 14 | 435 X 245 X 270 | |
| TDS3-45-AT | Set | 1 Set | 3.8 | 4 Set | 15 | 500 X 255 X 270 | |
| TDS3-50-AT | Set | 1 Set | 4.2 | 4 Set | 17 | 560 X 260 X 280 | |
| TDS3-55-AT | Set | 1 Set | 4.5 | 4 Set | 18 | 600 X 255 X 285 | |
