Friction Stay SS
- Made of 201 stainless steel.
- Applicable in wood, aluminum and PVC windows.
- Stack height: 13mm

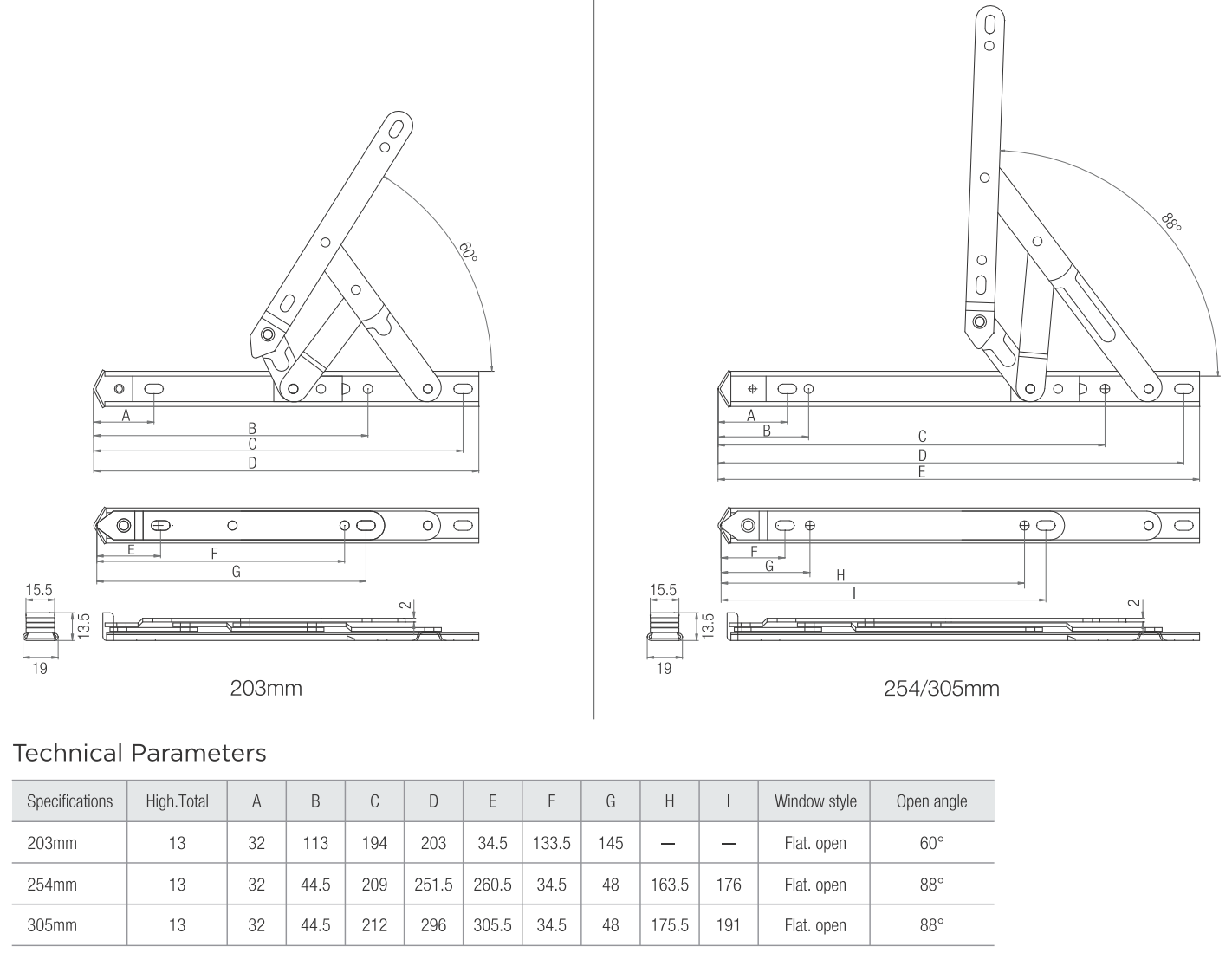

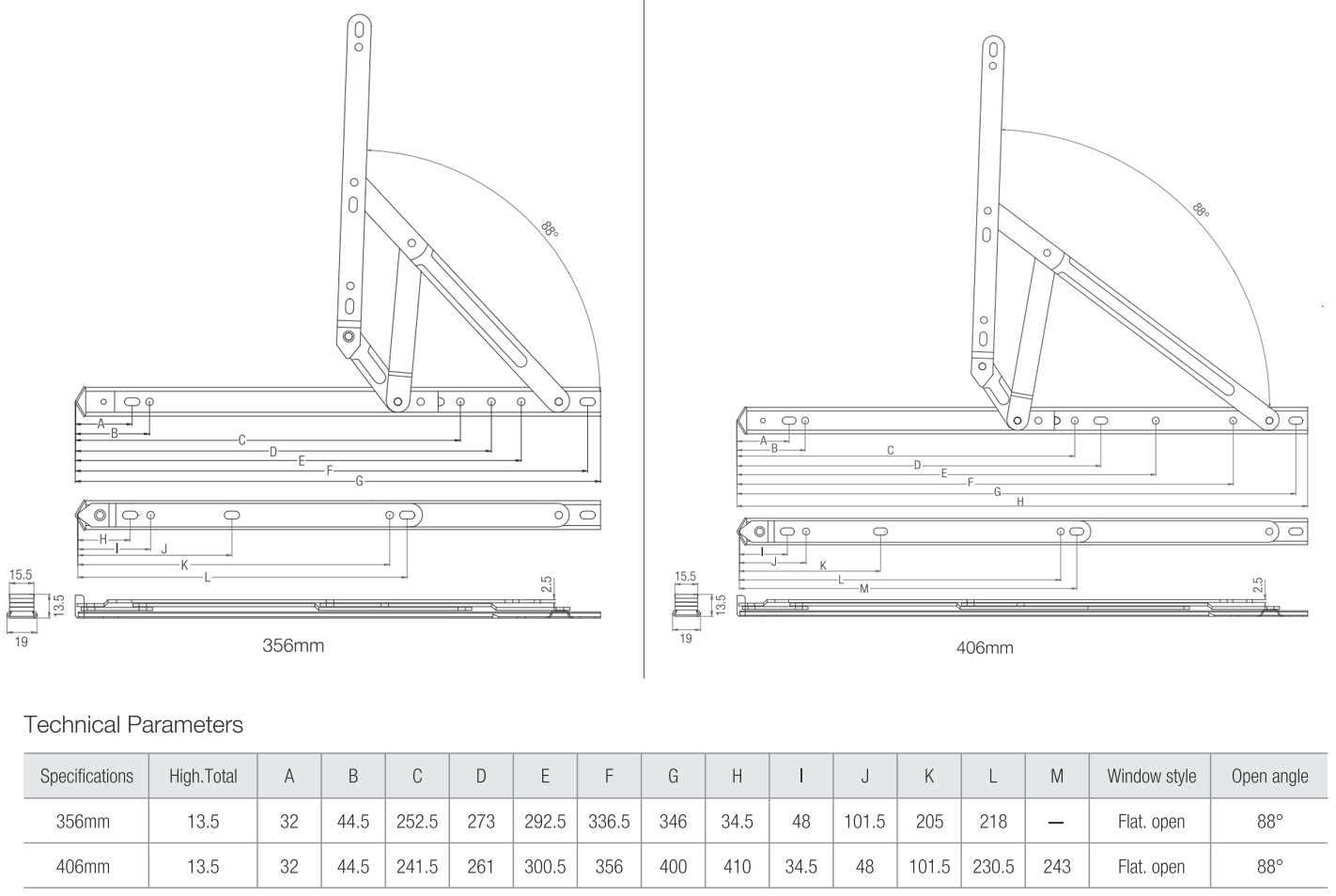

- Max. opening: 60° for 203mm and 88° for 254/305/356/406mm
- Can be used for side hung horizontal axis opening for ventilation windows, as well as top hung horizontal axis opening windows.
- Self cleaning design.
| Item | Code | Size(mm) | Window Size (HxW) mm | Max. Load | Stack height | Min. Width for Stays | No. of Bars | Finish |
| Friction Stay (60°) | ZFRS 813 | 203 | 400-230 | 8 | 13 | 19 | 4 | Stainless Steel |
| Friction Stay SS (13mm Stack Ht.) | ZFRS 1013 | 254 | 600-280 | 12 | 13 | 19 | 4 | |
| ZFRS 1213 | 305 | 800-330 | 18 | 13 | 19 | 4 | ||
| ZFRS 1413 | 356 | 950-380 | 22 | 13 | 19 | 4 | ||
| ZFRS 1613 | 406 | 105-430 | 28 | 13 | 19 | 4 |
| Item | Item Code | Pcs/Set | Inner Packing | Outer Packing | |||
| Qty (Nos/Set) | Weight (Kgs) | Qty (Nos/Set) | Weight (Kgs) | Box Size(mm) | |||
| Friction Stay (65°) | ZFRS 813 | Pair | - | - | 50 Set | 12.6 | 220 X 220 X 155 |
| Friction Stay SS (13 mm Stack Ht.) | ZFRS 1013 | Pair | - | - | 50 Set | 16 | 270 X 200 X 145 |
| ZFRS 1213 | Pair | - | - | 50 Set | 19 | 330 X 300 X 120 | |
| ZFRS 1413 | Pair | - | - | 50 Set | 23 | 370 X 300 X 115 | |
| ZFRS 1613 | Pair | - | - | 50 Set | 27 | 415 X 300 X 135 | |
