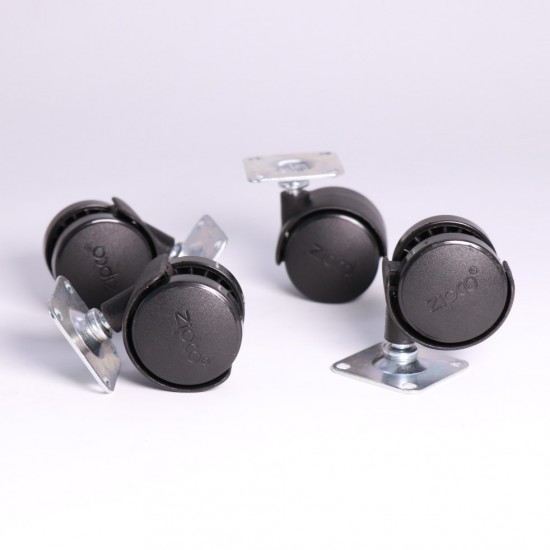

Twin Wheel Castor
- Twin Wheel Castors are designed for smooth running and long life.
- Manufactured out of glass filled nylon.
- Available in 2 type mounts - Plate & Thread.
| Model | Code Nos. | Wheel Dia. mm | Mounting | Set Height ‘A’ mm | Load Wheel Kgs | Material | Finish |
Twin wheel (Plate / Thread)* | 1/1/N40 | 40 | Plate:40x40mm; Hole Dia: 5mm | 57 (Plate) | 20 | Nylon | Black |
| Twin wheel with brake (Plate / Thread)* | 1/1/N40B | 40 | Plate:40x40mm; Hole Dia: 5mm | 57 (Plate) | |||
| Twin wheel (Plate / Thread)* | 1/1/N50 | 50 | Plate:40x40mm; Hole Dia: 5mm | 64 (Plate) | 35 | ||
| Twin wheel with brake (Plate / Thread)* | 1/1/N50B | 50 | Plate:40x40mm; Hole Dia: 5mm | 64 (Plate) |
*Add 'P', 'T' or 'U' after the code for castor with Plate, Thread or U-clamp respectively.
| Item | Item Code | Pcs/Set | Inner Packing | Outer Packing | |||
| Qty (Nos/Set) | Weight (Kgs) | Qty (Nos/Set) | Weight (Kgs) | Box Size(mm) | |||
| Twin Wheel Plate | 1/1/N40P | Set of 4 Pcs. | 1 Set | 0.37 | 25 Set | 9.3 | 610 x 170 x 375 |
| Twin Wheel Thread | 1/1/N40T | Set of 4 Pcs. | 1 Set | 0.37 | 25 Set | 9.3 | 610 x 170 x 375 |
| Twin Wheel Plate (With 2 Brakes) | 1/1/N40BP-2 | Set of 4 Pcs. | 1 Set | 0.37 | 25 Set | 9.3 | 610 x 170 x 375 |
| Twin Wheel Thread (With 2 Brakes) | 1/1/N40BT-2 | Set of 4 Pcs. | 1 Set | 0.37 | 25 Set | 9.3 | 610 x 170 x 375 |
| Twin Wheel Plate (With 4 Brakes) | 1/1/N40BP-4 | Set of 4 Pcs. | 1 Set | 0.37 | 25 Set | 9.3 | 610 x 170 x 375 |
| Twin Wheel Thread (With 4 Brakes) | 1/1/N40BT-4 | Set of 4 Pcs. | 1 Set | 0.37 | 25 Set | 9.3 | 610 x 170 x 375 |
| Twin Wheel Plate | 1/1/N50P | Set of 4 Pcs. | 1 Set | 0.38 | 25 Set | 9.4 | 610 x 170 x 375 |
| Twin Wheel Thread | 1/1/N50T | Set of 4 Pcs. | 1 Set | 0.38 | 25 Set | 9.4 | 610 x 170 x 375 |
| Twin Wheel Plate (With 2 Brakes) | 1/1/N50BP-2 | Set of 4 Pcs. | 1 Set | 0.38 | 25 Set | 14 | 610 x 170 x 375 |
| Twin Wheel Plate (With 4 Brakes) | 1/1/N50BP-4 | Set of 4 Pcs. | 1 Set | 0.38 | 25 Set | 14 | 610 x 170 x 375 |
| Twin Wheel Thread (With 4 Brakes) | 1/1/N50BT-4 | Set of 4 Pcs. | 1 Set | 0.38 | 25 Set | 14 | 610 x 170 x 375 |
