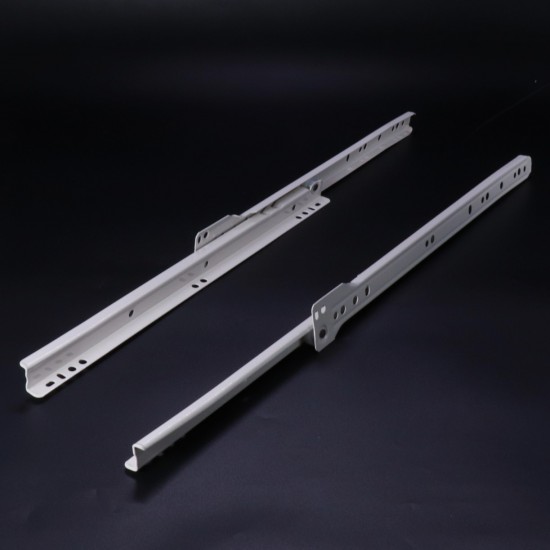

Bottom Mounting Drawer Slides
- Smooth silent roller system
- Right side pair has lateral guiding.
- Left side pair has side gap adjustment.
- Tilt and remove drawer.
- Stopper to prevent drawer from falling.
- "System-32" compable.
- Ribs provided for strength.
- Load capacity - 20 Kgs.
- Cycle test: 50,000
| Item | Item Code | Size | Max. Load Capacity (Kg.) | Finish | ||
| Length (mm) | Extension (mm) | Gap/Side (mm) | ||||
| Bottom Mounting Drawer Slides | Z-BMDS30 | 300 | 225 | 12.7 | 20 | Ivory |
| Z-BMDS35 | 350 | 275 | ||||
| Z-BMDS40 | 400 | 325 | ||||
| Z-BMDS45 | 450 | 375 | ||||
| Item | Item Code | Pcs/Set | Inner Packing | Outer Packing | |||
| Qty (Nos/Set) | Weight (Kgs) | Qty (Nos/Set) | Weight (Kgs) | Box Size(mm) | |||
| Bottom Mounting Drawer Slides | Z-BMDS30 | Set of 4 Pcs. | 25 Set | 7.5 | 50 Set | 15.3 | 315 X 215 X 250 |
| Z-BMDS35 | Set of 4 Pcs. | 25 Set | 8.6 | 50 Set | 17.4 | 315 X 215 X 250 | |
| Z-BMDS40 | Set of 4 Pcs. | 25 Set | 10 | 50 Set | 20.5 | 315 X 215 X 250 | |
| Z-BMDS45 | Set of 4 Pcs. | 25 Set | 11 | 50 Set | 22.6 | 315 X 215 X 250 | |
