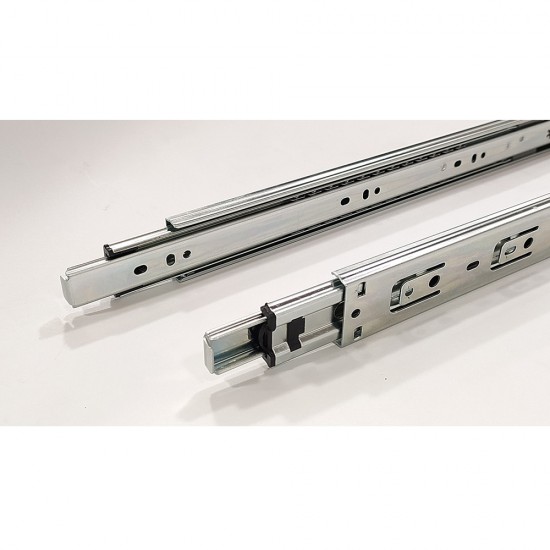

Ball Bearing Slides – 36mm Soft Close
- Precision ball bearing provides smooth operation.
- Its soft close feature closes the drawer effortlessly without any banging.
- Cycle Test: 50,000 cycles
- Height: 36mm
- load capacity: 30Kg
- Finish: Zinc White
| Model | Code Nos. | Length(mm) | Finish | Max Load(Kgs.) |
| Ball Bearing Slides – 36mm Soft Close | 2/5/ STDSM 30-SC | 300 | Zinc White | 30 |
| 2/5/ STDSM 35-SC | 350 | |||
| 2/5/ STDSM 40-SC | 400 | |||
| 2/5/ STDSM 45-SC | 450 | |||
| 2/5/ STDSM 50-SC | 500 |
| Item | Item Code | Pcs/Set | Inner Packing | Outer Packing | |||
| Qty (Nos/Set) | Weight (Kgs) | Qty (Nos/Set) | Weight (Kgs) | Box Size(mm) | |||
| Ball Bearing Slides - 36mm - Soft Close | 2/5 STDSM 30-SC | Set of 2 Pcs. | 20 Set | 12.4 | 41 Set | 26 | 315 X 215 X 250 |
| 2/5 STDSM 35-SC | Set of 2 Pcs. | 20 Set | 14.5 | 40 Set | 29 | 375 x 215 x 260 | |
| 2/5 STDSM 40-SC | Set of 2 Pcs. | 20 Set | 16.75 | 40 Set | 33 | 430 X 210 X 260 | |
| 2/5 STDSM 45-SC | Set of 2 Pcs. | 20 Set | 19.15 | 40 Set | 37 | 470 x 210 x 260 | |
| 2/5 STDSM 50-SC | Set of 2 Pcs. | 20 Set | 21.41 | 40 Set | 40 | 530 x 430 x 125 | |
For efficiency and durability:
1. Strictly maintain 12.7 to 13.0mm.
Fit slides parallel and at equal heights.
Do not apply paint or polish.
Do not let saw dust enter into the slides.
